segment.c File Reference

Letter segmentation via connected-component analysis and grid detection. More...

#include "segment.h"
#include <stdlib.h>
#include <string.h>
#include <stdio.h>

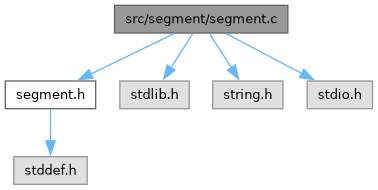

Include dependency graph for segment.c:

Classes
struct	Queue
	Simple heap-allocated FIFO queue for pixel coordinates. More...

Macros
#define	MIN_COMPONENT_SIZE   40
#define	MAX_COMPONENT_SIZE   4000
#define	MIN_ASPECT_RATIO   0.15f
#define	MAX_ASPECT_RATIO   6.0f

Functions
static Queue	queue_create (size_t cap)
	Allocate a Queue with initial capacity cap pixel pairs.
static int	queue_push (Queue *q, int x, int y)
	Append a pixel coordinate to the queue, growing if needed.
static void	queue_pop (Queue *q, int *x, int *y)
	Pop the front element. Caller must ensure queue is non-empty.
static int	queue_empty (const Queue *q)
	Return 1 if the queue has elements, 0 if empty.
static void	queue_free (Queue *q)
	Free queue memory.
int	segment_connected_components (const unsigned char *pixels, int width, int height, SegmentResult *out)
	Extract letter bounding boxes via connected-component analysis.
int	segment_detect_grid (const unsigned char *pixels, int width, int height, float min_span, SegmentResult *out)
	Detect grid lines and infer cell geometry.
static int	bbox_cmp (const void *a, const void *b)
	qsort comparator: sort BoundingBox by y then x.
void	segment_sort_reading_order (SegmentResult *res)
	Sort a SegmentResult's cells in reading order (top-to-bottom, left-to-right).
SegmentResult *	segment_image (const unsigned char *pixels, int width, int height)
	Segment a binarised image into letter cell bounding boxes.
void	segment_result_free (SegmentResult *res)
	Free a SegmentResult returned by segment_image().

Detailed Description

Letter segmentation via connected-component analysis and grid detection.

Macro Definition Documentation

MAX_ASPECT_RATIO

#define MAX_ASPECT_RATIO   6.0f

Maximum aspect ratio (w/h) of a letter bounding box.

MAX_COMPONENT_SIZE

#define MAX_COMPONENT_SIZE   4000

Maximum number of black pixels (filters out large blobs / noise).

MIN_ASPECT_RATIO

#define MIN_ASPECT_RATIO   0.15f

Minimum aspect ratio (w/h) of a letter bounding box.

MIN_COMPONENT_SIZE

#define MIN_COMPONENT_SIZE   40

Minimum number of black pixels in a component to be considered a letter.

Function Documentation

bbox_cmp()

int bbox_cmp ( const void * a, const void * b )

static

qsort comparator: sort BoundingBox by y then x.

Boxes with y-centres within 10 pixels of each other are considered the same row and sorted left-to-right.

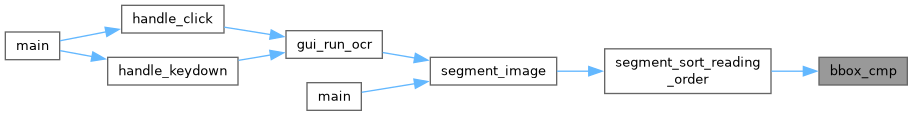

Here is the caller graph for this function:

queue_create()

Queue queue_create ( size_t cap )

static

Allocate a Queue with initial capacity cap pixel pairs.

Parameters

cap	Initial capacity (number of (x,y) pairs).

Returns

Initialised Queue, or {NULL,0,0,0} on failure.

Here is the caller graph for this function:

queue_empty()

int queue_empty ( const Queue * q )

static

Return 1 if the queue has elements, 0 if empty.

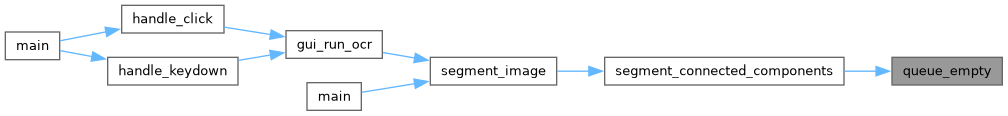

Here is the caller graph for this function:

queue_free()

void queue_free ( Queue * q )

static

Free queue memory.

Here is the caller graph for this function:

queue_pop()

void queue_pop ( Queue * q, int * x, int * y )

static

Pop the front element. Caller must ensure queue is non-empty.

Parameters

q	Queue.
x	Receives column.
y	Receives row.

Here is the caller graph for this function:

queue_push()

int queue_push ( Queue * q, int x, int y )

static

Append a pixel coordinate to the queue, growing if needed.

Parameters

q	Queue to push to.
x	Column.
y	Row.

Returns

0 on success, -1 on allocation failure.

Here is the caller graph for this function:

segment_connected_components()

int segment_connected_components	(	const unsigned char *	pixels,
		int	width,
		int	height,
		SegmentResult *	out )

Extract letter bounding boxes via connected-component analysis.

Uses an iterative flood-fill (queue-based, no recursion) to group connected black pixels into components. Components whose size and aspect ratio fall within the expected range for a letter are kept.

Parameters

pixels	Grayscale pixel array (0=black, 255=white), row-major.
width	Image width.
height	Image height.
out	Pre-allocated SegmentResult to fill.

Returns

Number of components found (≥ 0), -1 on error.

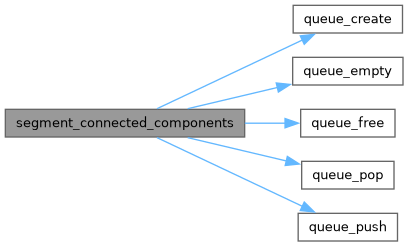

Here is the call graph for this function:

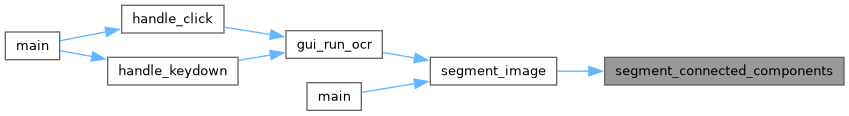

Here is the caller graph for this function:

segment_detect_grid()

int segment_detect_grid	(	const unsigned char *	pixels,
		int	width,
		int	height,
		float	min_span,
		SegmentResult *	out )

Detect grid lines and infer cell geometry.

Finds horizontal and vertical runs of dark pixels spanning at least min_span proportion of the image dimension to identify grid lines. Returns regular grid cell positions if a consistent grid is detected.

Parameters

pixels	Grayscale pixel array (0=black, 255=white), row-major.
width	Image width.
height	Image height.
min_span	Minimum fraction of dimension a line must span [0, 1].
out	Pre-allocated SegmentResult to fill.

Returns

1 if a regular grid was detected and out filled, 0 if no grid was found.

Note

STUB — full implementation deferred.

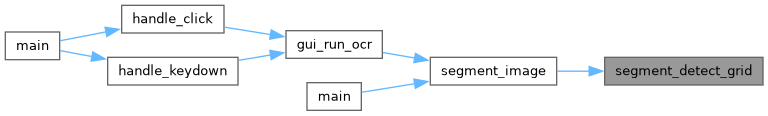

Here is the caller graph for this function:

segment_image()

SegmentResult * segment_image	(	const unsigned char *	pixels,
		int	width,
		int	height )

Segment a binarised image into letter cell bounding boxes.

Tries two strategies in order:

1. Grid-line detection (for crossword-style images with visible grid).
2. Connected-component analysis (for images without explicit grid lines).

The returned SegmentResult::cells array is ordered left-to-right, top-to-bottom.

Parameters

pixels	Flat grayscale pixel array (1 byte/pixel, 0=black, 255=white), row-major, width × height bytes.
width	Image width in pixels.
height	Image height in pixels.

Returns

Heap-allocated SegmentResult on success, NULL on error. Free with segment_result_free().

Note

STUB: grid-line detection and connected-component paths are partially implemented; see internal comments for the full algorithm outline.

Here is the call graph for this function:

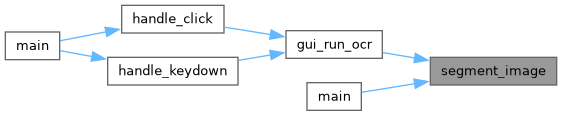

Here is the caller graph for this function:

segment_result_free()

void segment_result_free

(

SegmentResult *

res

)

Free a SegmentResult returned by segment_image().

Parameters

res	Result to free. No-op if NULL.

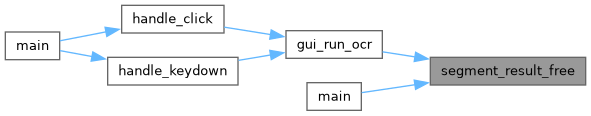

Here is the caller graph for this function:

segment_sort_reading_order()

void segment_sort_reading_order

(

SegmentResult *

res

)

Sort a SegmentResult's cells in reading order (top-to-bottom, left-to-right).

Cells are grouped into rows based on vertical overlap, then sorted left-to-right within each row.

Parameters

res	SegmentResult to sort in-place.

Here is the call graph for this function:

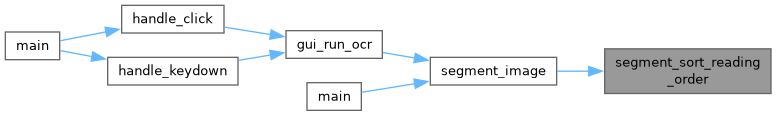

Here is the caller graph for this function:
