solver.h File Reference

Crossword word-search solver: find words in a 2-D character grid in all 8 directions. More...

#include <stddef.h>

Include dependency graph for solver.h:

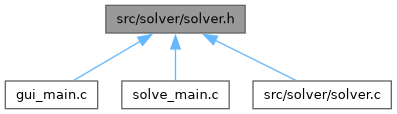

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	CharGrid
	A rectangular character grid. More...
struct	WordResult
	Result of a single word search. More...

Functions
CharGrid *	grid_create (int rows, int cols)
	Allocate a CharGrid of the given dimensions, filled with spaces.
void	grid_fill (CharGrid *grid, const int *labels, size_t count)
	Fill a CharGrid from an array of predicted character indices.
CharGrid *	grid_load (const char *path)
	Read a CharGrid from a plain-text file.
void	grid_print (const CharGrid *grid)
	Print a CharGrid to stdout (for debugging / verbose mode).
void	grid_free (CharGrid *grid)
	Free a CharGrid.
WordResult	solver_find (const CharGrid *grid, const char *word)
	Search for word in grid in all 8 directions.
const char *	solver_dir_name (int dir)
	Return the human-readable name of direction index dir.

Detailed Description

Crossword word-search solver: find words in a 2-D character grid in all 8 directions.

The character grid is built from the CNN's predictions after segmentation: each cell in the crossword image yields one predicted character (A–Z). The solver then searches for user-supplied words in the resulting grid.

Directions (clockwise from East): RIGHT, DOWN_RIGHT, DOWN, DOWN_LEFT, LEFT, UP_LEFT, UP, UP_RIGHT

Function Documentation

grid_create()

CharGrid * grid_create	(	int	rows,
		int	cols )

Allocate a CharGrid of the given dimensions, filled with spaces.

Parameters

rows	Number of rows.
cols	Number of columns.

Returns

Heap-allocated CharGrid, or NULL on failure. Free with grid_free().

Here is the caller graph for this function:

grid_fill()

void grid_fill	(	CharGrid *	grid,
		const int *	labels,
		size_t	count )

Fill a CharGrid from an array of predicted character indices.

Parameters

grid	Target grid (must already be allocated with the right size).
labels	Array of class indices in [0, 25]; labels[r*cols + c] gives the index for cell (r, c). 0='A', 25='Z'.
count	Number of elements in labels (must equal rows * cols).

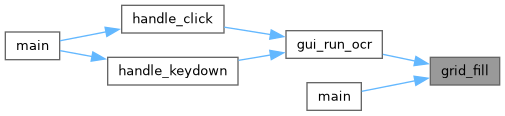

Here is the caller graph for this function:

grid_free()

void grid_free

(

CharGrid *

grid

)

Free a CharGrid.

Parameters

grid	Grid to free. No-op if NULL.

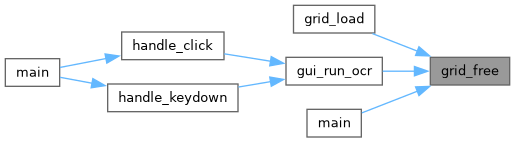

Here is the caller graph for this function:

grid_load()

CharGrid * grid_load

(

const char *

path

)

Read a CharGrid from a plain-text file.

File format (first line: dimensions, then one row per line):

rows cols
ABCDE
FGHIJ
…

Parameters

path	Path to the grid file.

Returns

Heap-allocated CharGrid on success, NULL on error. Free with grid_free().

Here is the call graph for this function:

grid_print()

void grid_print

(

const CharGrid *

grid

)

Print a CharGrid to stdout (for debugging / verbose mode).

Parameters

grid	Grid to display.

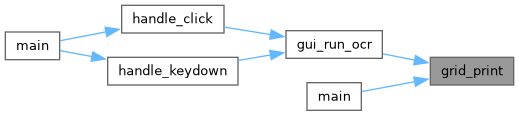

Here is the caller graph for this function:

solver_dir_name()

const char * solver_dir_name

(

int

dir

)

Return the human-readable name of direction index dir.

Directions are numbered 0–7: 0=RIGHT, 1=DOWN_RIGHT, 2=DOWN, 3=DOWN_LEFT, 4=LEFT, 5=UP_LEFT, 6=UP, 7=UP_RIGHT

Parameters

dir	Direction index in [0, 7].

Returns

Constant string (e.g. "RIGHT"), or "UNKNOWN" if out of range.

Here is the caller graph for this function:

solver_find()

WordResult solver_find	(	const CharGrid *	grid,
		const char *	word )

Search for word in grid in all 8 directions.

The search is case-insensitive; the grid and word are both converted to uppercase before comparison.

Parameters

grid	Character grid to search in.
word	Null-terminated string to search for (A–Z, case-insensitive).

Returns

WordResult with found=1 and coordinates if found, or found=0 if not present.

Here is the call graph for this function:

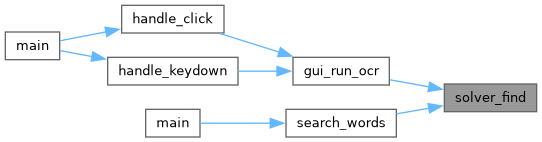

Here is the caller graph for this function:
